Quality cable protection conduit

Greenpipe Snipp & Snapp™Hardlock

Well-proven split pipe of high quality

Greenpipe Snipp & Snapp Hardlock™ is our original split pipe cable protection which has been produced for over 20 years. Often used when purchasers demand quality split pipes cable protection. Because of the integrated connection system, the product ensures quick and convenient connection without any tools and it easily connects to corrugated cable conduits.

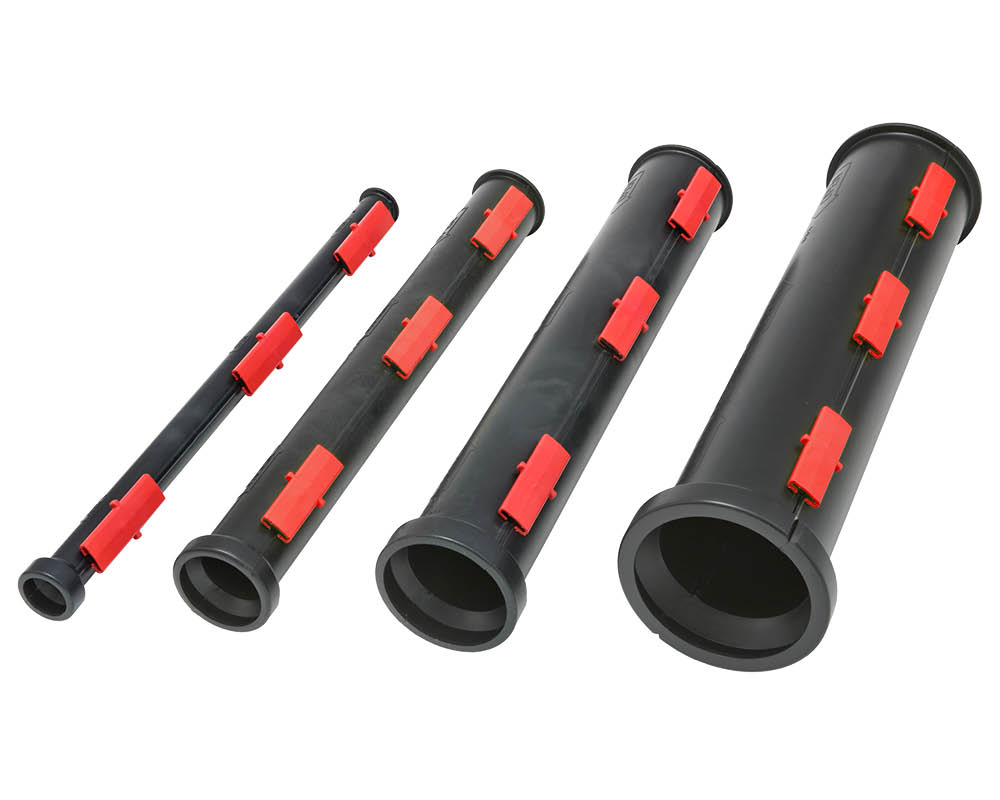

Grenpipe Snipp & Snapp Hardlock™ is 1 meter long and can be angled up to 15 degrees per connecting piece. The Geenpipe Snipp & Snapp Hardlock cable protection is produced in diameters from 60-220 mm, including moulded sleeve and three pre-mounted locking clamps in desired color. The divisible pull-resistant sleeve provides an ideal connection to ensure that the entire line remains fully protected, even over long distances.

Innovative design and integrated features

  • Locking clamps and hinges securing the pipe halves staying intact.

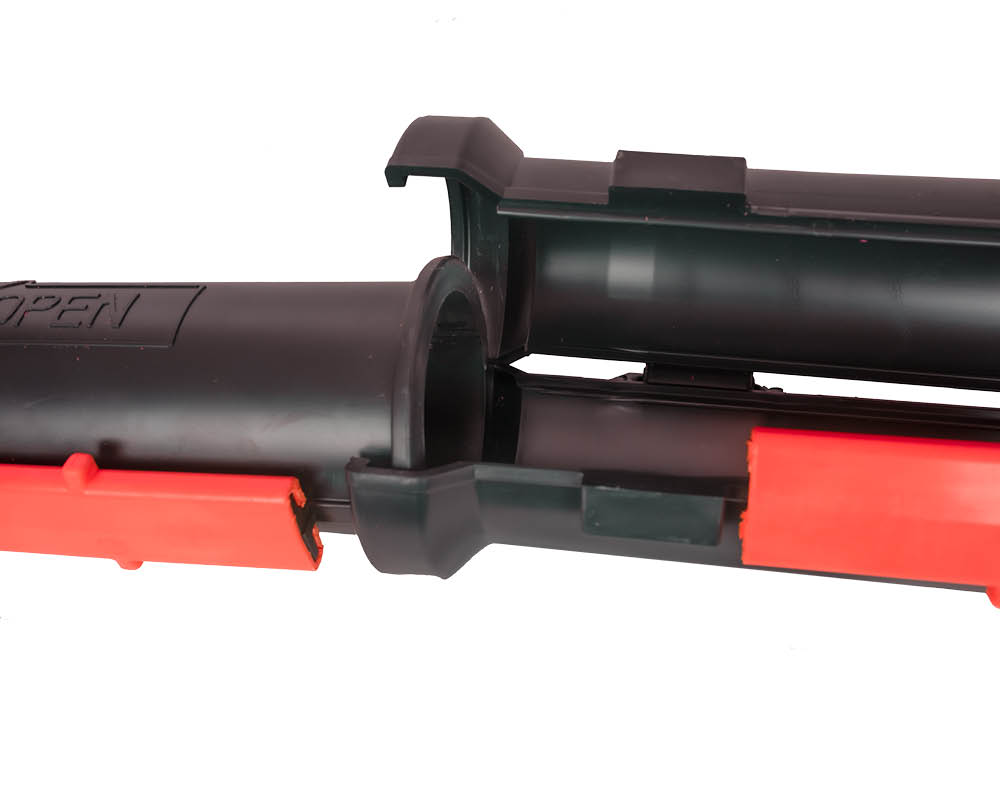

  • Connecting sleeves securing lengthwise connection between the pipe pieces.

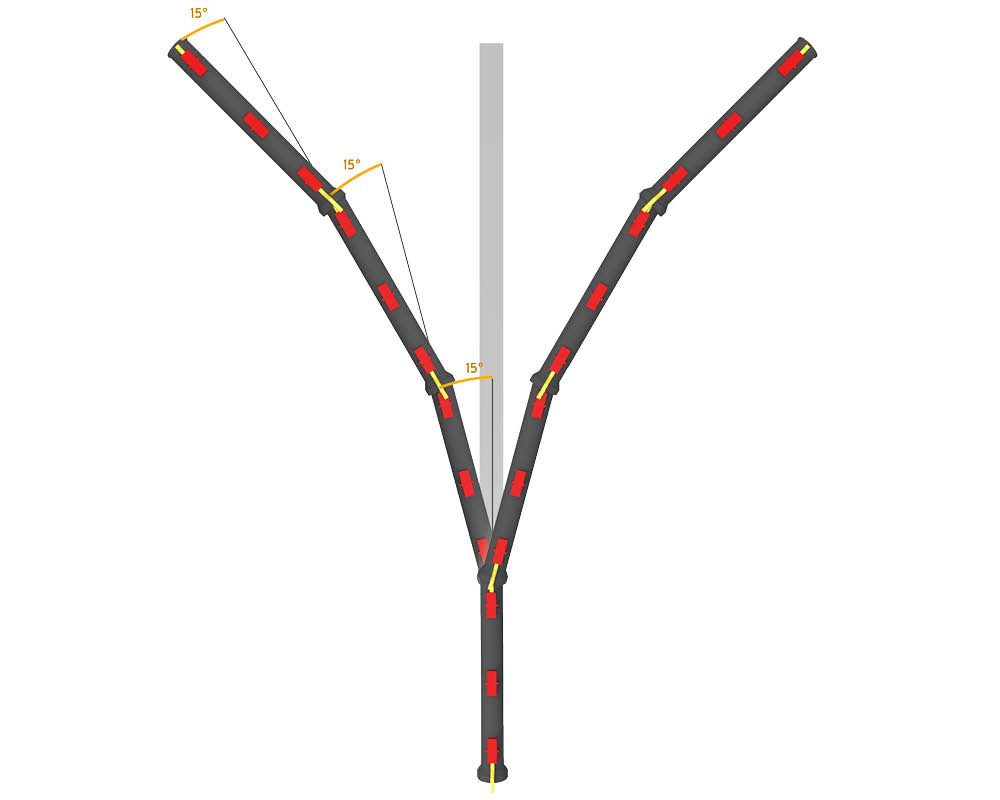

  • Tiltable 15 degrees in any direction enables flexible installation.

  • No tools or prior knowledge needed before installation.

Technical data

Outer diameter (mm) 60 110 160 220
Inner diameter (mm) 50 99 144 200
Length (cm) 100 100 100 100
Weight (kg) 1,2 2,7 4,3 8
Savings in oil & Co2-eq 2,04l/3,07kg 4,59l/6,91 kg 7,65l/11,52 kg 13,60l/20,48kg
Pieces/EU-pallet 128/256 54/108 24/48 12/24
Outer diameter (mm)
60  110  160  220
Inner diameter (mm)
50  99  144  200
Length (cm)
100  100  100  100
Weight (kg)
1,2  2,7  4,3  8
Savings in oil & Co2-eq
2,04l/3,07kg  4,59l/6,91 kg  7,65l/11,52 kg  13,60l/20,48kg
128/256  54/108  24/48  12/24

Environmentally friendly

Enhanced working environment for installers

Secure and sustainable cable installation

Fast and smooth installation without tools

Reusable, contributing to a circular economy

Order free samples

Interested in a few free samples for your own evaluation? Great!
Please provide your contact information below and we’ll get in touch to learn more about your needs to be able to provide accurate samples.

Integritetspolicy *
Thank you for your order! We will send you a box of free samples shortly.
Det har uppstått ett problem. Testa igen lite senare.

An environmentally friendly cable protection

Greenpipe Snipp & Snapp Hardlock™ is produced out of recycled plastic from discharged car bumpers in the automotive industry which has the exact qualities that we are looking for, UV- & cold resistance and shockproof. Tests shows an UV-light protection that will last at least 8-10 years above ground (in Scandinavian climate). The thermal lifetime estimation in tests was at least 50 years (at normal Scandinavian climate). Therefore, it is also reusable, contributing to a circular economy.
