Half shells protection pipe of recycled plastic

Sub-sea cables are exposed for very rough conditions such as currents, stony seabed, sea traffic and salts. To protect the cable and make sure it last its lifespan a protective pipe is commonly used. Our solution, Snap Panzar™, is widely used at a various type of sub-sea cable applications such as:

  • Shore-end installations
  • Crossing cables
  • Stony seabeds
  • At cable repairs
  • Flowing waters

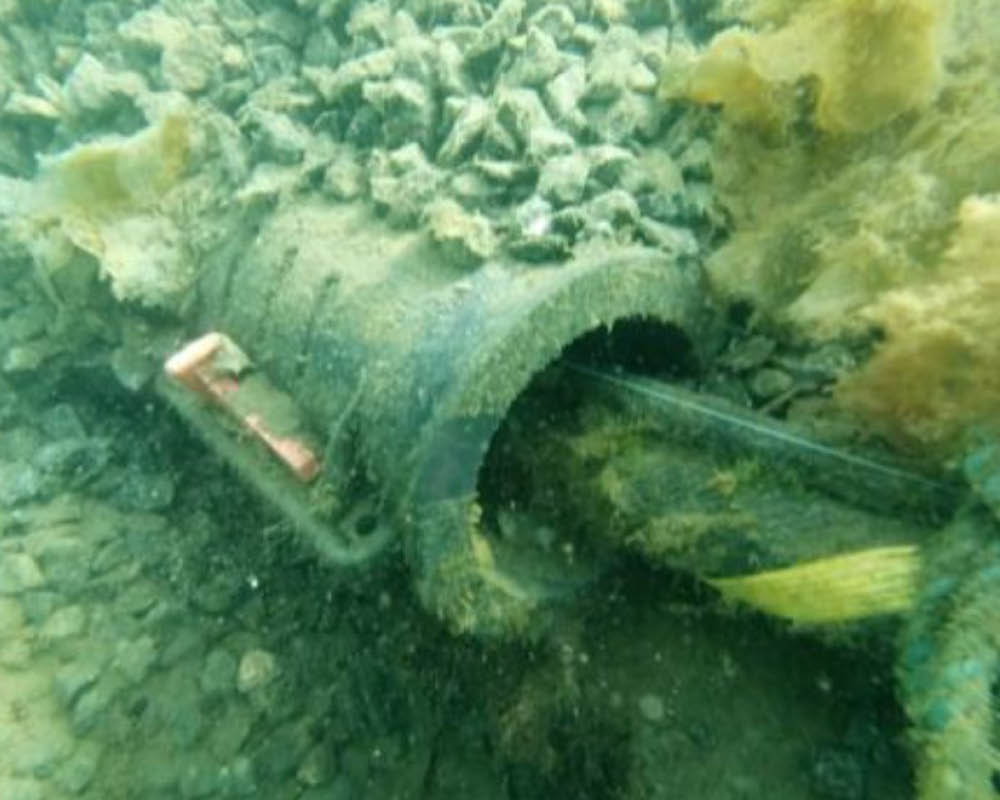

  • As distance to concrete mattresses and rock berms
  • Normally used at electrical cables up to 36 kV or fibre optic cables.

Request free samples

Request for quotation

Products suitable for sub-sea cable installation

Snap Panzar™ product picture.

Robust and tough, for extreme conditions!

Read more about Snap Panzar™
Snap Panzar with accessory weight system

Accessory weight system to Snap Panzar™.

Read more about Snap Weight™
Download icon

References

See all references

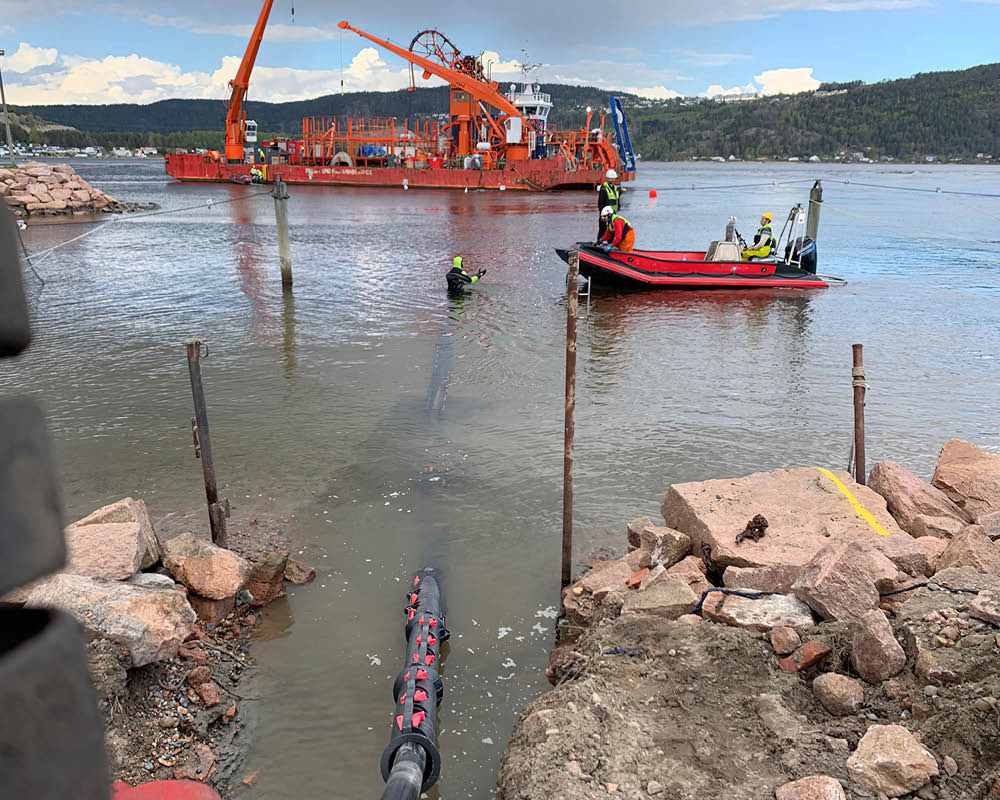

Shore end cable protection installation

Sub-sea cable installation at the south coast of Sweden

Project & location: "Möcklö-Senoren", electrifying an island in the archipelago of Karlskrona, Sweden. Purchaser: E.on Entrepreneurs: Vattenfall Service, Tärnöbolagen and Pimmens Dykservice. Product & quantities: 850 meters Snap Panzar™ 110 mm to protect the cable. Every third meter accessory Snap Weight™ 18 kg was installed to fixate the cable to the sea-bed.

Extra protection for a cable crossing a river.

Extra cable protection for cable crossing a river

Project & location: Extra cable protection for cable crossing the "Alsterån" river, Kalmar County, Sweden. Purchaser: Ålem Energi Entrepreneur: H. Andersson Dyk & Anläggning Product & quantities: 50 meters Snap Panzar™ 160 mm to protect the cable and 20 pieces of accessory Snap Weight™ 18 kg to fixate the cable in position.

Snap Panzar™ installed at existing subsea cable to prolong the lifetime of the cable.

Prolongation of existing sub-sea cable with Snap Panzar™

Project & location: Prolongation of existing sub-sea cable, west coast archipelago of Sweden. Product & quantities: 1650 meters Snap Panzar™ 160 mm was snapped around the existing cable by divers to prolong the cables lifetime. The reason for this was that wear and tear had been observed on the cable.

Sub-sea cable in the archipelago

A common application for our half shells protection pipe is the installation of sub-sea cable in or close to the archipelago. It might be to protect the entire distance or part of the distance tough for the cable, such as stony seabeds.

In this video you can take part of an installation which was conducted in 2020 in the archipelago of southern Sweden, just outside of the city Karlskrona. Our cable protection pipe Snap Panzar™ with a diameter of 110 mm was used to protect 1200 meters of the cable. To fixate the cable in desired position at the seabed our accessory weight system, Snap Weight™ of 12 kg, was used to prevent the cable from moving because of the flowing water.

As shown in the video, the Snap Panzar™ split pipe cable protection for sub-sea cable is very simple and effective to install.
